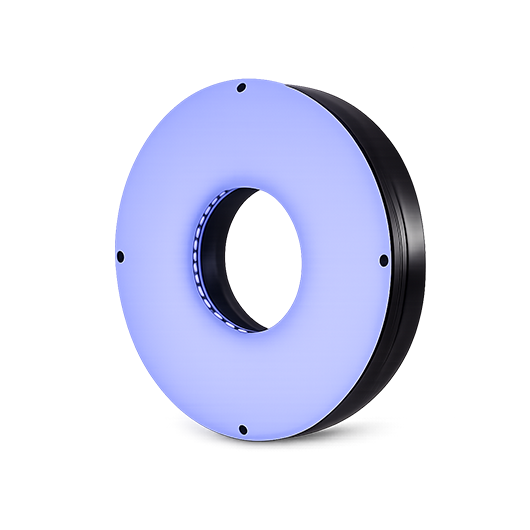

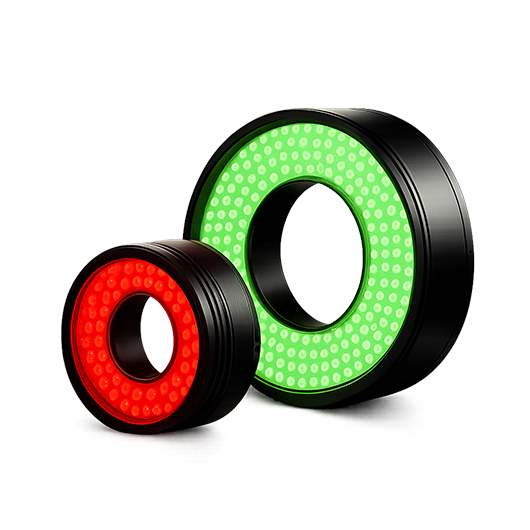

LIRF Series
A lighting system capable of providing wide and uniform
360-degree illumination to acquire shadow-free images.
Inspection Applications &
Example Images
Display Character Inspection
Checks whether characters and symbols displayed on the screen are output normally.
Label Inspection
Inspects the printing condition of attached labels, accuracy of information, and attachment quality.
IC Marking Inspection
Verifies whether identification information on the IC surface is correctly marked according to specifications.
Chip Component Inspection
Checks the appearance of chip components, mounting condition, and presence of basic defects.
Features
- Uniform Illumination
- Because the light is arranged to surround the target object, it provides uniform illumination without shadows.
- Minimized Specular Reflection (Glare)
- Since the illumination is almost coaxial with the camera, frontal reflections can be effectively controlled, reducing inspection errors caused by glare.
- Suitable for Various Surface Inspections
- Particularly effective for appearance inspection of objects with gloss, such as metal, plastic, and reflective materials.
- Easy Installation and Adjustment
- Can be mounted directly around the camera lens, allowing efficient use of space and simple installation.
Product List
Model
Color
Dimension
Voltage
PDF
